BDT3,100.00

M.R.P.: BDT 3,500.00 (11% off)

Lemorele 10-in-1 USB-C Mu..odel: TC46 , GRAY

Name: Lemorele 10-in-1 USB-C Mu..odel: TC46
Brand: Maraya Global
SKU: 69ad7aa44d176a1cd6335b88
Price: 3100 BDT
Availability: OutOfStock

Category:Accessories,Lemorele

Limited time dealSave - 11% (-400)

BDT 3,500.00BDT 3,100.00

Color: GRAY

About this item

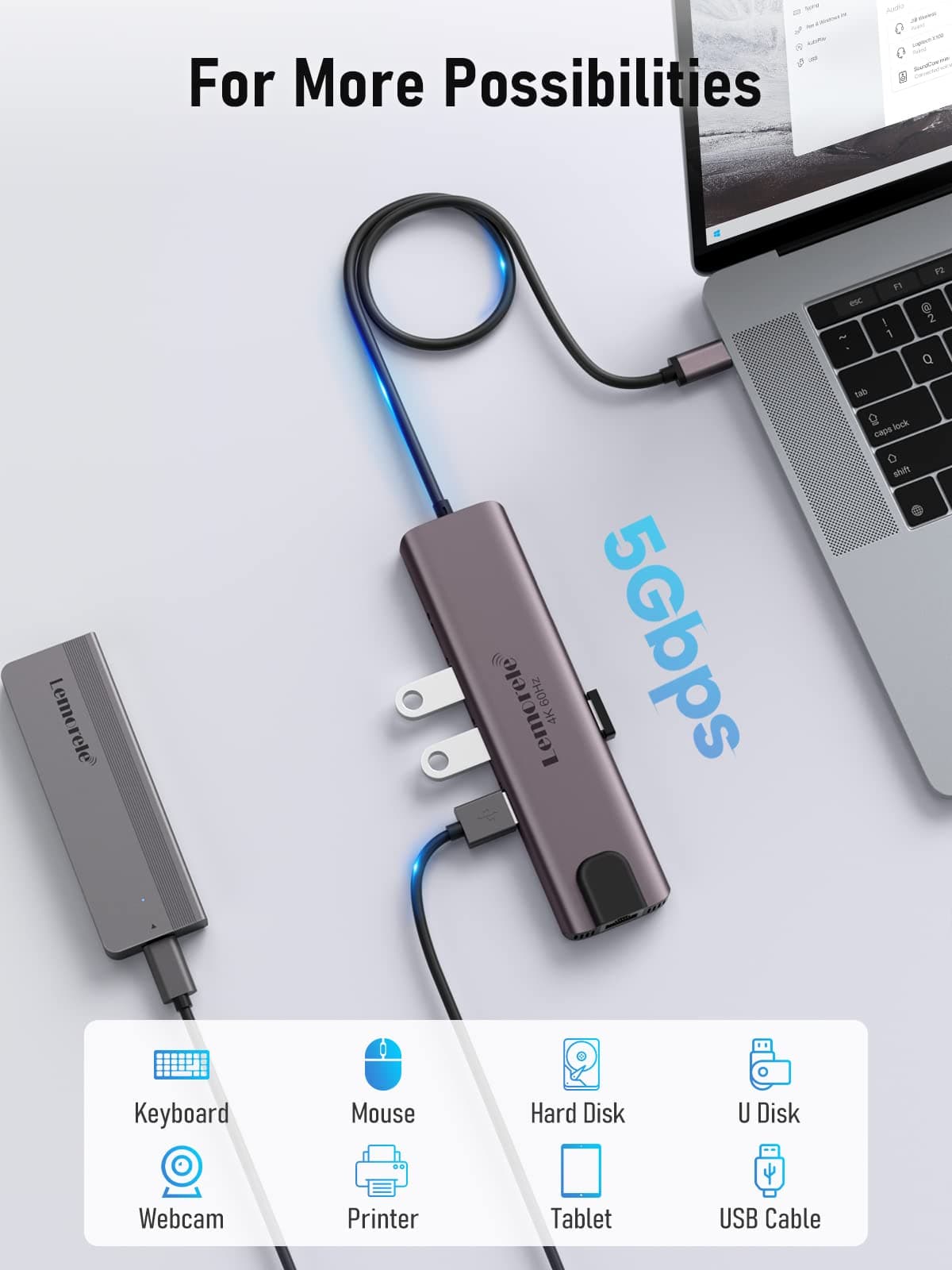

The Lemorele 10-in-1 USB-C Hub (Model TC46) is a high-performance multiport docking station designed to expand the connectivity of laptops, tablets, and smartphones via a single USB-C connection. It features a robust aluminum alloy or high-strength ABS construction with an integrated 26.5 cm cable for flexible desk placement.

Technical Specifications

Video Output:

1x HDMI 2.0: Supports resolutions up to 4K @ 60Hz (or 30Hz on specific variants). It supports both Mirror (SST) and Extended (MST) display modes for compatible Windows and macOS devices.

Data Transmission (6 Ports):

1x USB-C 3.0 Port: Dedicated for data transfer only with speeds up to 5Gbps; does not support power delivery or video.
2x USB-A 3.0 Ports: High-speed data transfer up to 5Gbps, suitable for external hard drives or flash drives.
2x USB-A 2.0 Ports: Optimized for peripherals like mice and keyboards to reduce interference, with speeds up to 480Mbps.

TF/SD 2.0 Card Reader: Dual slots for media access (not simultaneous reading). Supports cards up to 2TB with read speeds of 20MB/s and write speeds of 10MB/s.

-11% off

BDT3,100.00

List Price:BDT 3,500.00

Delivery & Returns

Bangladesh

FREE DELIVERY

FREE delivery in 1–3 Business Days

Delivering to Bangladesh

In Stock

Quantity:

Pay with

Secure

Ships fromMaraya Global

Sold byMaraya Global

Product Details

Complete product details and specifications

Description

Detailed product overview

Chipset & Internal Topology

The TC46 uses a multi-chip architecture to manage high-speed data and video concurrently:

· Main Chipset: CS7217 handles the core hub functions and video conversion.

· USB Controller: Features a Genesys GL3523 4-port USB 3.1 hub chip for high-speed lanes and a Genesys GL850 for the dedicated USB 2.0 peripheral ports.

· Ethernet Controller: Powered by the RealTek 8153 Gigabit controller, ensuring stable 1000Mbps wired performance.

Port Power & Data Management

· Shared USB Power: The total combined output for all USB-A and USB-C data ports is approximately 9W. Individual USB 3.0 ports can output up to 4.5W (5V/0.9A), while the USB-C data port is often limited to 2.5W (5V/0.5A).

· Power Delivery (PD) Overhead: While it supports 100W PD 3.0 input, the hub consumes about 10W–15W for its own operation. This results in a maximum safe pass-through to your laptop of 85W–90W.

· Card Reader Constraints: While it has two slots (SD and MicroSD/TF), it does not support simultaneous reading. Only the first card inserted will be recognized by the host system

Specifications

Technical details

No Specifications Available

Detailed product specifications will be displayed here once available.
